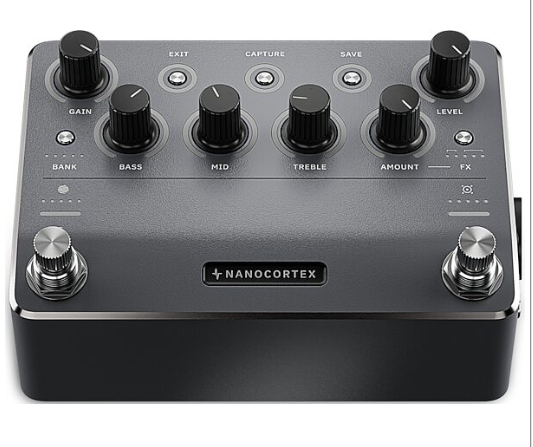

Neural DSP Nano Cortex Compact Digital Effects Processor

Neural DSP Nano Cortex Features:
An immensely powerful pedal-based processor, packing the might of the Quad Cortex down into a palm-sized package
Delivers the industry-leading sonic authenticity of the full-size Quad Cortex
Ultra-compact design can easily be tossed into a gig bag or placed on a pedalboard
Neural Capture technology and XLR combo jack allow you to capture your favorite amps, cabs, and drive pedals and save them as digital copies
IR Loader Global Bypass function bypasses the unit’s IR loader across all presets
7 customizable device blocks: 2 pre-FX blocks, 3 post-FX blocks, a Neural Capture block, and an IR loader
Input gate at the start of the signal chain allows you to deploy a noise gate without occupying a pre-FX block
2 modes: Capture Mode for capturing your gear and Performance Mode for when you’re ready to play or record
Any device block can be bypassed, allowing a variety of configurations
+26dB boost on combo input to aid you in capturing your gear
Saves up to 256 User Neural Captures, 256 User IRs, and 64 Presets
Global 3-band EQ, Gain, and Level controls
5 effect slots can be used solo or in tandem
2 encoder footswitches double in function, allowing you to select captures/IRs with the twist of the knob, while a stomp switches between 4 total presets (2 on each switch)
Bluetooth functionality, allowing you to connect to the companion Cortex Cloud app to access and share countless user-created and artist-crafted captures
Cortex Cloud app also provides enhanced editing capabilities, updates firmware, and can be used to remotely control many of the device’s standard functions
Cloud Backups make it easy to save and manage your settings
USB-C allows for comprehensive 24-bit, 48kHz audio interface functionality with low latency; USB-C cable included
Onboard tuner to ensure you’re always pitch-perfect
Versatile I/O consists of an instrument input, stereo outputs, EXP/MIDI jack, a headphone jack with a dedicated volume knob
Ground lift button to cut down on unwanted noise
Heavy-duty metal enclosure and top-quality components ensure road-ready durability

Tech Specs
Pedal Type: Multi-FX, Amp Modeling, Digital Amp Capture
Number of Effects: 2 x pre-FX blocks (Gate, Transpose), 3 x post-FX blocks (Chorus, Delay, Reverb)
Presets: 64 x User
Analog/Digital: Digital
Impulse Response: 25 x Factory Neural Captures, 256 x User Neural Captures, 10 x Factory IRs, 256 x User IRs
Expression Control: Yes, External
Inputs: 1 x 1/4″ TRS (instrument), 1 x XLR-1/4″ (Capture Out)
Outputs: 2 x 1/4″ TRS (L, R/Capture out)
Headphones: 1 x 1/8″ TRS
MIDI I/O: 1 x 1/4″ TRS Type A (In, Expression)
USB: 1 x USB-C (24-bit, 48kHz Audio Interface, Midi)
Bluetooth : Yes, App control
Bypass Switching: Buffered Bypass
Software: Cortex Cloud app
OS Requirements – Mac: iOS 11.0 or later
OS Requirements – PC: Android 5 or later
Power Source: 9-12V DC 600mA power supply (sold separately), USB Bus power (5V, 1.5A)
Height: 2.4″
Width: 5.6″
Depth: 4″
Weight: 1.36 lbs.
