FR-800-C Rotary Rebar Bender Cutter Combo

FR-800-C Rotary Rebar Bender Cutter Combo

Both bend and cut up to #8 (1″ dia.) rebar with one easy to use machine. Set up at the shop or out on the job site.

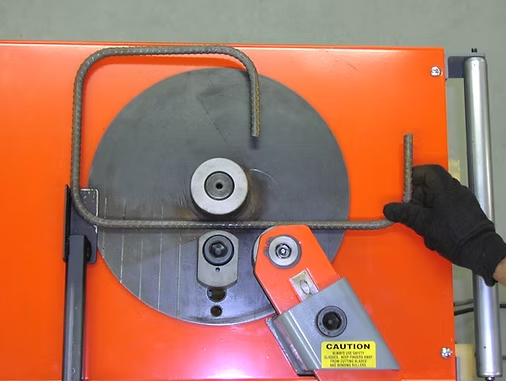

The convenience of a rotary table rebar bender combined with an open jaw rebar cutter places the FR-800-C Rebar Bender Cutter apart from the competition. Up to 190° bends can be made while one end of the rebar remains stationary. This compact electric/hydraulic machine plugs into a standard 110-volt outlet and will both cut and bend up to and including 1″ (#8) grade 60 rebar. 2″ high bending dies and cutting blades let you stack 3 – 1/2″ (#4) bars and bend or cut them at once!

Create uniform bends by setting the infinitely variable angle control that accurately controls the rotation of the table. Two separate angles can be preset. A foot pedal control and complete bending die set comes standard with the FR-800-C Rebar Cutter Bender.

NOTE: Pictures show an optional reference fence attachment that can be ordered separately. Add the reference fence attachment for an easy to use adjustable material stop up to 4 feet.

NOTE: Ships via semi-tractor trailer. A Commercial shipping address is highly recommended.

Call or email us if you are located outside of the continental United States for shipping and payment options.

Call or email us if you are located outside of the continental United States for shipping and payment options.

​Truck Deliveries
machines are too heavy to ship with UPS or FedEx Express. They must be shipped via semi-tractor trailer such as FedEx Freight or YRC, etc.​

Pick-up At Terminal

​Another delivery option is to have the shipment held at the trucking company’s terminal so you can pick it up at your convenience within 3 days of arrival. Contact us for terminal locations near you.

Additional Shipping Charges

​Additional shipping charges will be added for accessorial services and shipping to residential, outlying or remote areas. Please call for a shipping quote.

Time Frame

machines are always in stock, ready to ship anytime. We usually ship within 1 day of receiving your order. As soon as we ship we will contact you with the trucker name, PRO number and tracking info, and expected date of delivery.

Before Signing Delivery Receipt

Check for any damage to packaging.

Check for any damage to product.

Check for any missing pieces.

Note any concerns on the bill of lading BEFORE driver leaves.

Refusal of delivery is advised for severely damaged products. Call us first for our recommendation.

Refusal of Shipment

If you refuse delivery of an undamaged shipment you will be charged both to and from shipping fees.

Shipping – Risk of Loss

All items purchased from mconnoisseurstore are made pursuant to a shipment contract. This means the risk of loss and title for such items pass to you upon our delivery to the carrier. mconnoisseurstore is not responsible or liable for any damage arising from shipment.



Description Specification

Bender and Cutter Capacity

(grade 60 rebar)

1 bar – #8, #7, or #6

2 bars – #5

3 bars – #4

4 bars – #3



Dimensions 32″L x 24″W x 31″H

Weight 390 pounds

Bender Speed

2 seconds / 90 degrees up to #5

7 seconds / 90 degrees up to #8

Cutter Speed 2 – 4 seconds

Voltage : 110-120 volts standard

220-240 volts optional

50/60 cycles, single phase

Amps : 14 @ 110 volts

7 @ 220 volts

Power Supply
Two stage hydraulic pump driven

by a one horsepower continuous

duty electric motor.



Operation Control
Foot Pedal

Automatic return on release

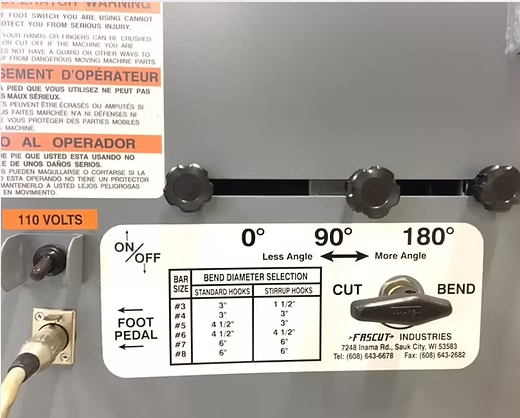

Bend Angle Control
0 – 190 degrees, infinitely variable

2 presets, accurate repeat

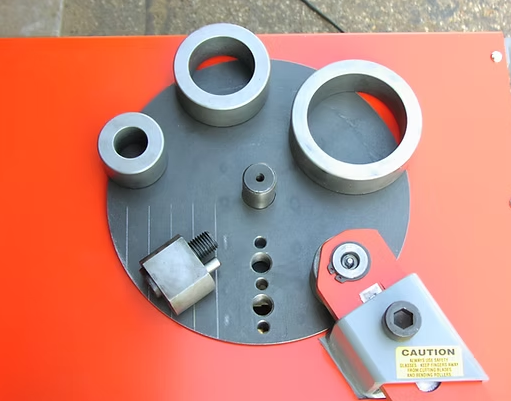

Bend Die Diameters 1-1/2″, 3″, 4-1/2″, 6″

Bender Method  :Rotary Turntable

Cutter Method: Open Jaw Shear
Cutting blade edges  :4  usable sides
Reference Fence Attachment Optional – adjustable to 4 feet
