DJI Matrice 4D Drone (RC Plus 2 Enterprise)

Matrice 4D Camera Payload
The Matrice 4D camera payload offers wide-angle, medium telephoto, and telephoto lenses, plus a laser rangefinder. The wide-angle lens can capture 4K video and 20MP images, while the medium tele offers foreground stabilization for clear inspections of cracks or reading text from up to 32.8′ away. The telephoto lens gives you even more range, with an ability to capture signs and details from up to 820′ away, and use stabilization for to keep subjects clear, even at 10x zoom or more. Finally, the laser rangefinder can deliver accurate distance readings from up to 1.1 miles away.

Intelligent Flight and Control
Automated Routes: Set a flight route and the drone will automatically capture of subjects and send notifications to operators.
Intelligent Change Detection: Enables efficient periodical analysis of changes in an area, assisting operators in environmental protection, natural disaster relief and crack detection for more effective and informed decision making.
Smart Track: Operators can utilize the powerful auto-zoom capabilities of the drone to quickly track a subject, such as a vehicle or a vessel for efficient follow-up review.
Virtual Cockpit: The Virtual Cockpit remote control interface has been significantly enhanced with the introduction of the new Mouselook feature. This enhancement allows the drone to adjusts its attitude and gimbal orientation automatically, enabling rapid and precise centering of the frame, thus achieving “point and see.”

Efficient Operation
Open and Fly: Take off quickly and arrive at the emergency site to improve situational awareness. After enabling optimal route planning, use FlyTo Tasks to reach a designated point 0.62 miles away and at 328′ height within 100 seconds.
Low-Latency Live View: Engine upgrade significantly reduces live view latency on FlightHub 2, providing reliable support for real-time decision-making.
Transmit While Flying: In emergency scenarios, real-time data transmission and rapid modeling can be achieved during flight. Data transfer can be completed immediately upon landing, and a rough model can be quickly generated via the cloud, significantly enhancing efficiency.

Additional Details

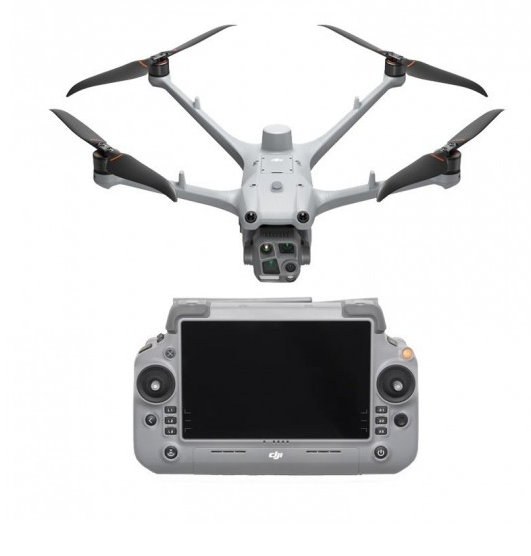

RC Plus 2 Enterprise controller included for standalone use
High-precision mapping with five-direction oblique photography
Three-direction orthophoto photography and real-time terrain following
Up to 54 minutes of flight time at speeds up to 33.5 mph
IP55-rated water and dust resistant
Low-noise anti-ice propellers for stable flight in freezing rain
Four-time high-resolution low-light fisheye lenses with low-light positioning and obstacle sensing
Night Scene mode for full-color night vision
Relay function to work with other drones to increase range in mountainous regions
Works with DJI FlightHub 2 software

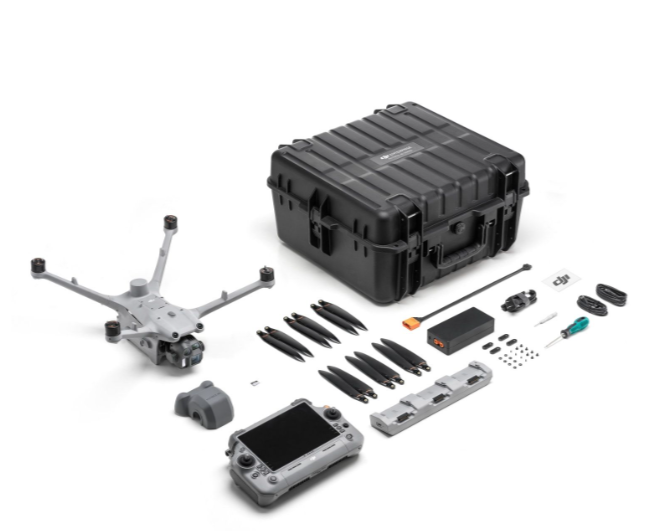

Items Included
DJI Matrice 4D Drone (RC Plus 2 Enterprise)
Flight Battery
RC Plus 2 Enterprise Controller
2 x Low-Noise Anti-Ice Spare Propeller
240W Power Adapter
240W Charging Hub

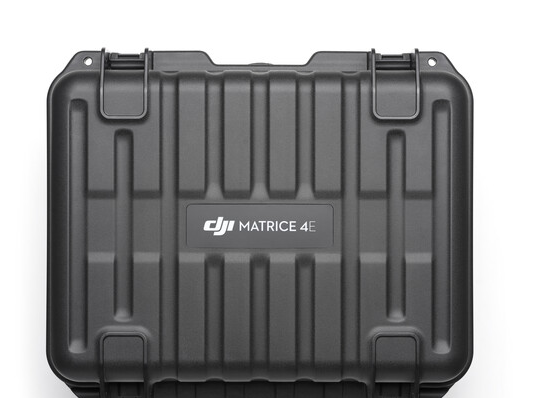

Storage Case
Carrying Case Strap
Screwdriver Set
Screwdriver for Remote Controller
USB-C Data Cable
USB-A to USB-C Data Cable
Power Fast Charge Cable for Drones
Gimbal Protector
microSD Card
6 x M2.5 Propeller Blade Screw
6 x Rubber Propeller Washer
4 x M1.6 Aircraft Cellular Module Compartment Screw

DJI Matrice 4D Specs
Key Specs
Maximum Flight Time
54 Minutes
Remote ID
No
Control Method
Included Transmitter
Weight
4.1 lb / 1850 g (With Propellers, Battery, Gimbal, Camera)

Performance
Maximum Horizontal Speed
47.0 mph / 21 m/s
Maximum Ascent Speed
22.4 mph / 10 m/s
Maximum Descent Speed
17.9 mph / 8 m/s
Maximum Wind Resistance
26.8 mph / 12 m/s
Maximum Take-Off Altitude
4 Miles / 6500 m
Maximum Flight Time
54 Minutes
Maximum Hover Time
47 Minutes
Maximum Tilt Angle
30°
Hovering Accuracy
Vision Positioning
Vertical: ±0.3′ / 0.1 m
Horizontal: ±1.0′ / 0.3 m
RTK
Vertical: ±0.3′ / 0.1 m
Horizontal: ±0.3′ / 0.1 m
GNSS
Vertical: ±1.6′ / 0.5 m
Horizontal: ±1.6′ / 0.5 m
Maximum Angular Velocity
200°/s

Aircraft
Rotor Configuration
Quadcopter
Remote ID
No
Operating Conditions
-4 to 122°F / -20 to 50°C

Remote Controller / Transmitter
Control Method
Included Transmitter
Transmission System
Wi-Fi 6 (802.11ax)
Frequencies: 2.4 GHz (2.400 to 2.4835) / 5.1 GHz (5.150 to 5.250) / 5.8 GHz (5.725 to 5.850)
Power at 2.4G: 26 dBm (FCC) / 20 dBm (CE/MIC/SRRC)
Power at 5.1G: 26 dBm (FCC) / 23 dBm (CE/MIC/SRRC)
Power at 5.8G: 26 dBm (FCC/SRRC) / 14 dBm (CE)
Maximum Operating Distance
15.5 Miles / 25 km
Transmitter I/O
1x HDMI Output (Video)
Clean Video Output
Not Specified by Manufacturer
Battery Type
Built-In Lithium-Ion (6500 mAh)
Operating Temperature
-4 to 122°F / -20 to 50°C
Mobile App Compatible
No
Built-In Display
7.02″ (1920 x 1200) Touchscreen LCD, 1400 nits/ cd/m2
Dimensions
6.4 x 3.7 x 10.6″ / 163 x 94.5 x 268 mm

Flight Battery
Battery Chemistry
Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO2)
Battery Capacity
6768 mAh / 149.9 Wh
Battery Configuration
6 S / 22.14 V
Maximum Charging Power
25.5 V
Charging Temperature
41 to 113°F / 5 to 45°C
Weight
1.4 lb / 640 gFlight Battery
Battery Chemistry
Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO2)
Battery Capacity
6768 mAh / 149.9 Wh
Battery Configuration
6 S / 22.14 V
Maximum Charging Power
25.5 V
Charging Temperature
41 to 113°F / 5 to 45°C
Weight
1.4 lb / 640 g

General
GNSS Support
GPS, GLONASS, BeiDou, Galileo
Diagonal Size
1.6′ / 498.5 mm
Overall Dimensions
16.4 x 8.4 x 14.9″ / 416.2 x 212.5 x 377.7 mm
Weight
4.1 lb / 1850 g (With Propellers, Battery, Gimbal, Camera)
