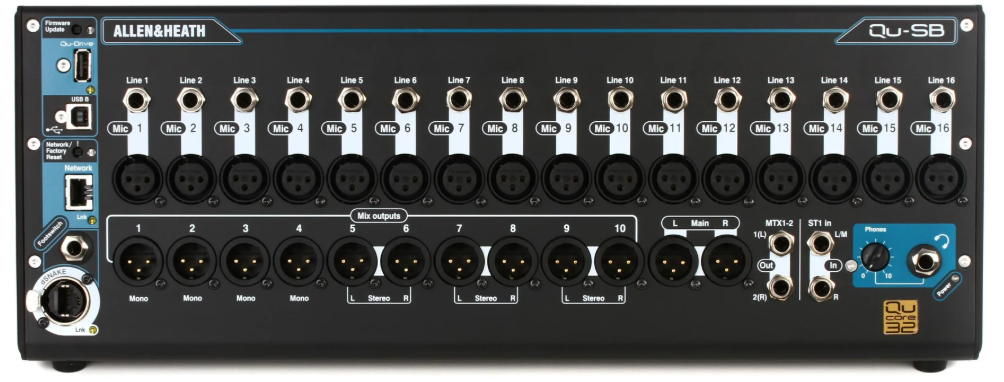

Allen & Heath Qu-SB 16-channel Portable Digital Mixer

Allen & Heath Qu-SB Portable Digital Mixer Features:
16-channel portable digital mixer
16 AnalogiQ mic preamps with total-recall capability
Expandable up to 32-in/24-out using dSNAKE AudioRacks (not included)
Supports up to 11 monitor mixes (4 mono, 7 stereo)
Four effects engines drive four dedicated effects Sends/Returns
4 Mute Groups and 4 DCA Groups help you manage larger mixing tasks
Qu-Pad iPad App for all live mixing controls
Qu-You iPhone App for personal monitoring
Qu-Drive direct Multitrack recording and playback on USB drives
Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
ProFactory Mic Presets provides EQ presets for popular industry-standard microphones
Automatic Mic Mixer manages mic levels automatically, perfect for conferences, meetings and panel discussions

Tech Specs
Type: Digital Mixer
Channels: 16
Inputs – Mic Preamps: 16 x XLR
Phantom Power: Yes
Inputs – Line: 16 x 1/4″, 2 x 1/4″ (stereo paired)
Outputs – Main: 2 x XLR
Outputs – Other: 2 x 1/4″ (stereo matrix out), 4 x XLR (mono mix out), 6 x XLR (3 stereo mix outs)
Aux Sends: 11 monitor mixes (4 mono, 7 stereo), 4 x dedicated FX sends/returns
Busses/Groups: 4 x stereo groups, 4 x DCA groups, 4 x mute groups
Data I/O: 2 x Ethernet (Cat5 dSnake port, Network link)
USB: 1 x Type B (audio interface), 1 x Type A (direct recording/playback)
Computer Connectivity: USB (32 x 32)
I/O Expansion Slots: Expansion via dSnake for additional inputs and networking
Headphones: 1 x 1/4″
EQ Bands: 4-band parametric, Graphic
Effects: 4 x FX engines (reverbs, delays, double tracking, chorus, symphonic, phaser, flanger)
Signal Processing: Compression, Gates, Filters
Features: Spectrogram feedback elimination, RTA with peak band indication
DAW Control: DAW MIDI control
Software: Qu-Pad iPad app, iLive FX library, iPhone/Android personal monitor app
Rackmountable: Yes (kit sold separately)
Height: 6.4″
Depth: 6.9″
Width: 17.2″
Weight: 9.9 lbs.
