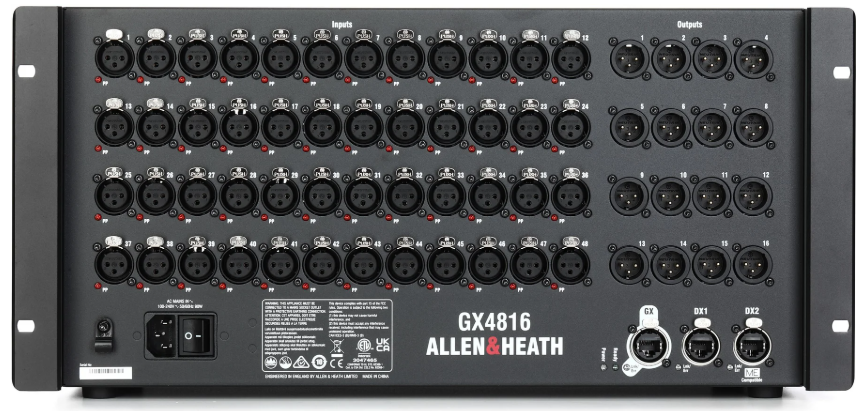

Allen & Heath GX4816 48×16 Portable GX Expander

Allen & Heath GX4816 Audio Expander Features
A 5U, 48-input/16-output, 96kHz digital I/O expansion for A&H dLive and SQ mixing consoles
Each input features a remote-controllable microphone preamp with individual phantom power LEDs
Two DX expansion ports let you hook up 1 DX32 or up to 2 DX168/ DX164-W expanders
Connect up to 2 GX4816s to an SQ system, 3 to a dLive C Class system, or 5 to a dLive S Class system
Plug-and-play connection via standard Cat 5e cables (EtherCon ports) with automatic IP addressing

Tech Specs
Type: Portable GX Expander
Compatibility: A&H dLive, SQ mixing consoles
Channels: 48 x 16
Inputs – Mic Preamps: 48 x XLR
Outputs – Main: 16 x XLR
Data I/O: 1 x EtherCon (GX), 2 x EtherCon (DX)
Rackmountable: 5U
Power Source: Standard IEC AC cable
Height: 9″
Depth: 10″
Width: 18.9″
Weight: 17.6 lbs.
